Technical Specification Package

Group Project by Chakshu M. & Mylenna S.

Technical Specification Package Illustrations

Style Number: JKT001

Season/Year: Winter/2015

Style Name: Waterproof Jacket

Division: Women's Wear

Size Range: XS - XXL

Sheet Name: Front and Back Flat

Created By: Chakshu Mewada, Mylenna Silva

Modified By: Chakshu Mewada, Mylenna Silva

JKT001 Waterproof Jacket Technical Drawing

Style Number: JKT001

Season/Year: Winter/2015

Style Name: Waterproof Jacket

Division: Women's Wear

Size Range: XS - XXL

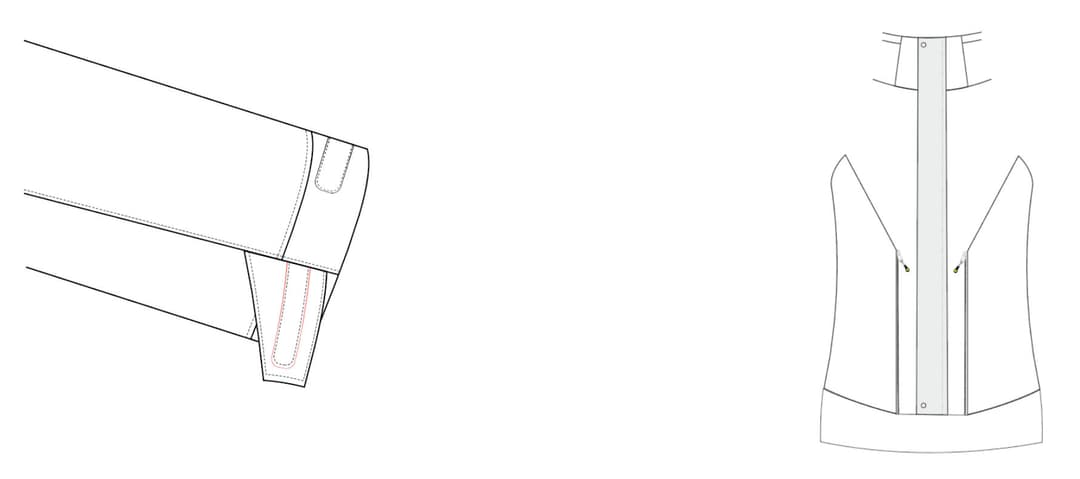

Sheet Name: Insideout Details

Created By: Chakshu Mewada, Mylenna Silva

Modified By: Chakshu Mewada, Mylenna Silva

JKT001 Waterproof Jacket Color View
A

Shell

--- gsm

B

Shell Contrast

100% Polyester

--- gsm

C

Mesh Lining

100% Polyester

60 +/- gsm

D

Lining

100% Polyester

--- gsm

E

Fabric A

100% Polyester

--- gsm

F

Fabric B

100% Polyester

--- gsm

Style Number: JKT001

Season/Year: Winter/2015

Style Name: Waterproof Jacket

Division: Women's Wear

Size Range: XS - XXL

Sheet Name: Insideout Details

Created By: Chakshu Mewada, Mylenna Silva

Modified By: Chakshu Mewada, Mylenna Silva

JKT001 Waterproof Jacket Technical Drawing
A

Shell

--- gsm

B

Shell Contrast

100% Polyester

--- gsm

C

Mesh Lining

100% Polyester

60 +/- gsm

D

Lining

100% Polyester

--- gsm

E

Fabric A

100% Polyester

--- gsm

F

Fabric B

100% Polyester

--- gsm

Style Number: JKT001

Season/Year: Winter/2015

Style Name: Waterproof Jacket

Division: Women's Wear

Size Range: XS - XXL

Sheet Name:Insideout Details

Created By: Chakshu Mewada, Mylenna Silva

Modified By: Chakshu Mewada, Mylenna Silva

JKT001 Waterproof Jacket Technical Drawing
A

Shell

--- gsm

B

Shell Contrast

100% Polyester

--- gsm

C

Mesh Lining

100% Polyester

60 +/- gsm

D

Lining

100% Polyester

--- gsm

E

Fabric A

100% Polyester

--- gsm

F

Fabric B

100% Polyester

--- gsm

Style Number: JKT001

Season/Year: Winter/2015

Style Name: Waterproof Jacket

Division: Women's Wear

Size Range: XS - XXL

Sheet Name: Insideout Details

Created By: Chakshu Mewada, Mylenna Silva

Modified By: Chakshu Mewada, Mylenna Silva

JKT001 Waterproof Jacket Technical Drawing
A

Shell

--- gsm

B

Shell Contrast

100% Polyester

--- gsm

C

Mesh Lining

100% Polyester

60 +/- gsm

D

Lining

100% Polyester

--- gsm

E

Fabric A

100% Polyester

--- gsm

F

Fabric B

100% Polyester

--- gsm

Style Number: JKT001

Season/Year: Winter/2015

Style Name: Waterproof Jacket

Division: Women's Wear

Size Range: XS - XXL

Sheet Name: Insideout Details

Created By: Chakshu Mewada, Mylenna Silva

Modified By: Chakshu Mewada, Mylenna Silva

JKT001 Waterproof Jacket Technical Drawing
A

Shell

--- gsm

B

Shell Contrast

100% Polyester

--- gsm

C

Mesh Lining

100% Polyester

60 +/- gsm

D

Lining

100% Polyester

--- gsm

E

Fabric A

100% Polyester

--- gsm

F

Fabric B

100% Polyester

--- gsm

Style Number: JKT001

Season/Year: Winter/2015

Style Name: Waterproof Jacket

Division: Women's Wear

Size Range: XS - XXL

Sheet Name: Insideout Details

Created By: Chakshu Mewada, Mylenna Silva

Modified By: Chakshu Mewada, Mylenna Silva

JKT001 Waterproof Jacket Technical Drawing
A

Shell

--- gsm

B

Shell Contrast

100% Polyester

--- gsm

C

Mesh Lining

100% Polyester

60 +/- gsm

D

Lining

100% Polyester

--- gsm

E

Fabric A

100% Polyester

--- gsm

F

Fabric B

100% Polyester

--- gsm

Style Number: JKT001

Season/Year: Winter/2015

Style Name: Waterproof Jacket

Division: Women's Wear

Size Range: XS - XXL

Sheet Name: Insideout Details

Created By: Chakshu Mewada, Mylenna Silva

Modified By: Chakshu Mewada, Mylenna Silva

JKT001 Waterproof Jacket Technical Drawing
A

Shell

--- gsm

B

Shell Contrast

100% Polyester

--- gsm

C

Mesh Lining

100% Polyester

60 +/- gsm

D

Lining

100% Polyester

--- gsm

E

Fabric A

100% Polyester

--- gsm

F

Fabric B

100% Polyester

--- gsm

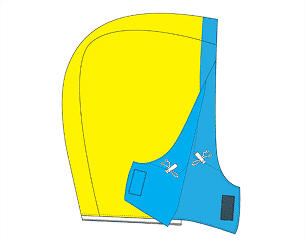

Construction - Removal Hood

Style Number: JKT001

Season/Year: Winter/2015

Style Name: Waterproof Jacket

Division: Women's Wear

Size Range: XS - XXL

Sheet Name: Hood Outside/Inside Details

Created By: Chakshu Mewada, Mylenna Silva

Modified By: Chakshu Mewada, Mylenna Silva

JKT001 Waterproof Jacket Technical Drawing

Style Number: JKT001

Season/Year: Winter/2015

Style Name: Waterproof Jacket

Division: Women's Wear

Size Range: XS - XXL

Sheet Name: Hood Outside/Inside Details

Created By: Chakshu Mewada, Mylenna Silva

Modified By: Chakshu Mewada, Mylenna Silva

JKT001 Waterproof Jacket Technical Drawing

Brand identity - ARTWORK

Style Number: JKT001

Season/Year: Winter/2015

Style Name: Waterproof Jacket

Division: Women's Wear

Size Range: XS - XXL

Sheet Name: Front & Back Flat

Created By: Chakshu Mewada, Mylenna Silva

Modified By: Chakshu Mewada, Mylenna Silva

Application Format

Application Format

TRIMS - CORD & CORD LOCK

Style Number: JKT001

Season/Year: Winter/2015

Style Name: Waterproof Jacket

Division: Women's Wear

Size Range: XS - XXL

Sheet Name: Front & Back Flat

Created By: Chakshu Mewada, Mylenna Silva

Modified By: Chakshu Mewada, Mylenna Silva

Application Format

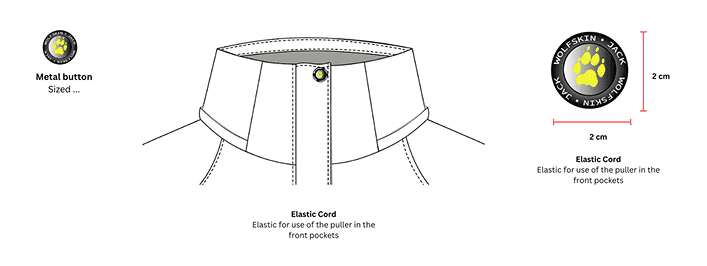

TRIMS - BUTTONS

Style Number: JKT001

Season/Year: Winter/2015

Style Name: Waterproof Jacket

Division: Women's Wear

Size Range: XS - XXL

Sheet Name: Front & Back Flat

Created By: Chakshu Mewada, Mylenna Silva

Modified By: Chakshu Mewada, Mylenna Silva

Application Format

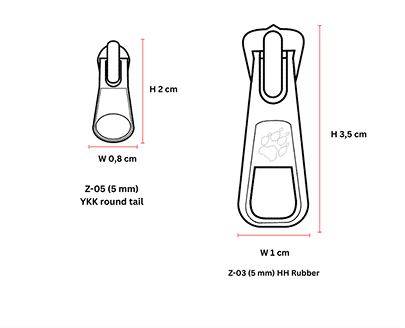

TRIMS - ZIPPER PULLER

Style Number: JKT001

Season/Year: Winter/2015

Style Name: Waterproof Jacket

Division: Women's Wear

Size Range: XS - XXL

Sheet Name: Front & Back Flat

Created By: Chakshu Mewada, Mylenna Silva

Modified By: Chakshu Mewada, Mylenna Silva

Application Format

Brand identity - ARTWORK

Style Number: JKT001

Season/Year: Winter/2015

Style Name: Waterproof Jacket

Division: Women's Wear

Size Range: XS - XXL

Sheet Name: Front & Back Flat

Created By: Chakshu Mewada, Mylenna Silva

Modified By: Chakshu Mewada, Mylenna Silva

Screen Print

Application Format

Embroidery & Application format

Application Format
Application Format

Style Number: JKT001

Season/Year: Winter/2015

Style Name: Waterproof Jacket

Division: Women's Wear

Size Range: XS - XXL

Sheet Name: Inside out Details

Created By: Chakshu Mewada, Mylenna Silva

Modified By: Chakshu Mewada, Mylenna Silva

Application Format

Measurement Charts

Style Number: JKT001

Season/Year: Winter/2015

Style Name: Waterproof Jacket

Division: Women's Wear

Size Range: XS - XXL

Sheet Name: Measurement Details

Created By: Chakshu Mewada, Mylenna Silva

Modified By: Chakshu Mewada, Mylenna Silva

MEASUREMENT CHART

CodeUnit of Measure (In Cms)TOL +TOL -XSSMLXLXXL
Front Length63.5
Centre Back70
Chest with Circumference107
Across Shoulder41
Across Shoulder (front)38
Across Shoulder (back)38.5
Waist Width50
Bottom Hem Height2
Bottom Opening Circumference110
Yoke Depth Front
Yoke Depth @ Armhole Straight
Yoke Back Depth
Sleeve Length Overarm (raglan sleeve)69.5
Sleeve Length Underarm51
Straight Armhole Width Circumference46
Muscle Width Circumference (1st below armhole)44
Elbow Width Circumference37
Sleeve Opening Width Circumference23
Sleeve Cuff Height2.5
Neck Drop Front14
Neck Drop Back10
Neck Width21
Collar Length48
Collar Band Height8
Fly Zipper Length Front23
Fly Zipper Width Front3
Fly Zipper Length Front (Base)24
Fly Zipper Width Front (Base)4.5
Applied Pocket Zipper Opening1.5
Front Pocket Zipper Length16
Front Hood Length32.5
Hood Opening CF (Circumference)46
Hood Width26

MEASUREMENT CHART

CodePoint of Measure (Unit: Inch/cm)TOL +TOL -S
Front LengthFront Length1/2"1/2"24"
Centre Back LengthCentre Back Length1/2"1/2"24"10
Chest Width/Circumference (1" below armhole)Chest Width/Circumference (1" below armhole)1/2"1/2"42"
Across ShoulderAcross Shoulder1/4"1/4"17"
Across Chest @ Center ArmholeAcross Chest @ Center Armhole1/4"1/4"18"
Across Back @ Center ArmholeAcross Back @ Center Armhole1/4"1/4"15"9
Waist Width (15" below HPS)Waist Width (15" below HPS)1/4"1/4"20"
Bottom Hem HeightBottom Hem Height001"
Bottom Opening CircumferenceBottom Opening Circumference0021.5"
Yoke Depth FrontYoke Depth Front1/8"1/8"
Yoke Depth @ Armhole StraightYoke Depth @ Armhole Straight1/8"1/8"
Yoke Back DepthYoke Back Depth1/8"1/8"
Sleeve Length OverarmSleeve Length Overarm3/8"3/8"27"½
Sleeve Length UnderarmSleeve Length Underarm3/8"3/8"20"
Straight Armhole Width/CircumferenceStraight Armhole Width/Circumference
Muscle Width Circumference (1" below armhole)Muscle Width Circumference (1" below armhole)3/8"3/8"9"
Elbow Width CircumferenceElbow Width Circumference1/8"1/8"7"¼
Sleeve Opening Width CircumferenceSleeve Opening Width Circumference1/4"1/4"10"
Sleeve Cuff HeightSleeve Cuff Height1/8"1/8"1"½
Neck Drop FrontNeck Drop Front1/8"1/8"3"
Neck Drop BackNeck Drop Back1/8"1/8"1"⅜
Neck WidthNeck Width1/8"1/8"7"⅜
Collar LengthCollar Length1/8"1/8"17"½
Collar Band HeightCollar Band Height1/4"1/4"10"
Collar Point HeightCollar Point Height1/4"1/4"
Fly Zipper LengthFly Zipper Length1/2"1/2"
Fly Zipper Length WidthFly Zipper Length Width00
Applied Pocket Height @ FrontApplied Pocket Height @ Front1/4"1/4"
Applied Pocket Height @ SideApplied Pocket Height @ Side1/4"1/4"
Applied Pocket WidthApplied Pocket Width1/4"1/4"
Front Pocket Zipper OpeningFront Pocket Zipper Opening1/4"1/4"
Front Pocket Zipper OpeningFront Pocket Zipper Opening00
Front Hood LengthFront Hood Length3/8"3/8"
Hood Opening CF (Circumference)Hood Opening CF (Circumference)3/8"3/8"
Hood WidthHood Width3/8"3/8"
